# 手写RPC框架：基于Java SPI的可扩展版
# 封装服务接口
在之前的章节中，我们基于Java Socket实现了一个极简版本的RPC框架，了解了其实现的大概套路，本节我们就基于Java SPI写一个可扩展的RPC框架。各种组件都有对应的接口，如果你想替换某一个组件的实现，只需要重写接口的实现类，配置一下即可。
rpc框架整体调用流程如下所示。
老规矩，先封装一个获取学生信息的公共接口
public interface StudentService {
Student getStudentInfo(Integer id);
}
@Data
@Builder
@NoArgsConstructor
@AllArgsConstructor
public class Student implements Serializable {
private Integer id;
private String name;
private Integer age;
}
# 工具类
为了让大家更清晰的理解RPC框架的实现，也为了让项目看着更简洁，我就没有抽取对应的API层和配置类，固定从rpc.properties中读取配置信息，所以写了一个读取配置的工具类
@Slf4j
public class PropertiesUtil {
private static Properties properties;
static {
String fileName = "rpc.properties";
properties = new Properties();
try {
properties.load(new InputStreamReader(PropertiesUtil.class.getClassLoader().getResourceAsStream(fileName), "utf-8"));
} catch (IOException e) {
log.error("read rpc.properties error", e);
}
}
public static String getProperty(String key) {
String value = properties.getProperty(key.trim());
if (StringUtils.isBlank(value)) {
return null;
}
return value.trim();
}
public static String getProperty(String key, String defaultValue) {
String value = properties.getProperty(key.trim());
if (StringUtils.isBlank(value)) {
value = defaultValue;
}
return value.trim();
}
public static Integer getInteger(String key) {
String value = getProperty(key);
if (StringUtils.isBlank(value)) {
return null;
}
return Integer.valueOf(value);
}
public static Integer getInteger(String key, Integer defaultValue) {
String value = getProperty(key);
if (StringUtils.isBlank(value)) {
return defaultValue;
}
return Integer.valueOf(value);
}
}
基于SPI根据接口获取对应实现的过程也封装了一个工具类，固定返回加载到的第一个实现类（加载顺序我们在之前的章节中提到了哈），否则就报ServiceLoadException。
目前项目中只有注册中心和负载均衡策略可以通过Java SPI的方式替换，大家理解意思就成，我就不把所有的组件都改成通过SPI的方式加载了
public class SpiUtil {
public synchronized static <S> S load(Class<S> service) {
return StreamSupport.stream(ServiceLoader.load(service).spliterator(), false)
.findFirst().orElseThrow(ServiceLoadException::new);
}
}
public class ServiceLoadException extends RuntimeException {
}
对zookeeper的各种操作都是通过curator这个框架来执行的
@Slf4j
public class CuratorZkUtil {
public static final String ROOT_PATH = "/simple-rpc";
private static CuratorFramework zkClient;
// 类似 Map<String, List<String>>
// 保存服务名和服务提供者地址的映射关系
private static final Multimap<String, String> serviceMap = ArrayListMultimap.create();
private static String defaultZkAddress = PropertiesUtil.getProperty("registry.address");
private CuratorZkUtil() {}
public static void setZkAddress(String address) {
defaultZkAddress = address;
}
public static CuratorFramework getZkClient() {
// 重试3次，每次间隔1000ms
RetryPolicy retryPolicy = new ExponentialBackoffRetry(1000, 3);
if (zkClient == null) {
synchronized (CuratorZkUtil.class) {
if (zkClient == null) {
zkClient = CuratorFrameworkFactory.newClient(defaultZkAddress, retryPolicy);
zkClient.start();
}
}
}
return zkClient;
}
// 创建节点
public static void create(CuratorFramework zkClient, String path, boolean isPersistent) {
try {
if (zkClient.checkExists().forPath(path) != null) {
log.info("path {} is already exists", path);
} else {
if (isPersistent) {
zkClient.create().creatingParentContainersIfNeeded().withMode(CreateMode.PERSISTENT).forPath(path);
} else {
zkClient.create().creatingParentContainersIfNeeded().withMode(CreateMode.EPHEMERAL).forPath(path);
}
}
} catch (Exception e) {
log.error("createPersistentMode error", e);
throw new RpcException(e.getMessage(), e);
}
}
// 获取子节点
public static List<String> getChildrenNodes(CuratorFramework zkClient, String path) {
log.info("getChildrenNodes param path: {}", path);
if (serviceMap.containsKey(path)) {
log.info("hit cache");
return (List<String>) serviceMap.get(path);
}
List<String> result = null;
try {
if (zkClient.checkExists().forPath(path) == null) {
return result;
}
result = zkClient.getChildren().forPath(path);
registryWatcher(zkClient, path);
} catch (Exception e) {
log.error("getChildrenNodes error", e);
throw new RpcException(e.getMessage(), e);
}
return result;
}
// 注册监听
public static void registryWatcher(CuratorFramework zkClient, String path) {
// 1.只能监听子节点，监听不到当前节点
// 2.不能递归监听，即监听不到子节点下的子节点
PathChildrenCache cache = new PathChildrenCache(zkClient, path, true);
PathChildrenCacheListener listener = ((CuratorFramework client, PathChildrenCacheEvent event) -> {
String changePath = event.getData().getPath();
changePath = changePath.substring(changePath.lastIndexOf("/") + 1);
switch (event.getType()) {
case CHILD_ADDED:
case CHILD_UPDATED:
log.info("child add or update");
serviceMap.put(path, changePath);
break;
case CHILD_REMOVED:
log.info("child removed");
serviceMap.remove(path, changePath);
break;
default:
break;
}
log.info("eventType: {}, path: {}", event.getType(), changePath);
});
cache.getListenable().addListener(listener);
try {
cache.start();
} catch (Exception e) {
log.error("registryWatcher error", e);
}
}
}

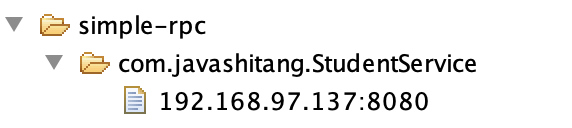

创建节点的时候服务节点的名字是持久节点（如com.javashitang.StudentService），服务提供者地址节点是临时节点（192.168.97.137:8080）
在这个工具类中缓存了服务提供者具体地址，保存在serviceMap中。
此时你可能会问，如果服务提供者宕机了，缓存还在，那岂不是每次调用都会调用失败？ 此时就体现出临时节点的作用，我们对服务提供者地址节点注册了监听，当服务宕机，服务调用者会收到消息，此时就会从本地删除缓存消息
这篇文章是按照服务调用和请求响应的流程组织的
# Consumer端
我们需要在rpc.properteis配置文件中配置zookeeper的地址，key固定为registry.address
rpc.properteis
registry.address=myhost:2181
public class RpcClient {
public static void main( String[] args ) {
// 获取代理类
StudentService studentService = ConsumerProxy.getProxy(StudentService.class);
for (int i = 0; i < 5; i++) {
System.out.println(studentService.getStudentInfo(10));
}
}
}
在启动类中通过ConsumerProxy工具类获取接口的代理对象，调用接口的方法即可获取到结果
生成代理的方式是通过jdk的动态代理
public class ConsumerProxy {
public static <T> T getProxy(final Class<T> interfaceClass) {
return (T) Proxy.newProxyInstance(interfaceClass.getClassLoader(),
new Class<?>[]{interfaceClass}, new ConsumerInvocationHandler());
}
}
需要实现InvocationHandler接口完成具体的代理逻辑
public class ConsumerInvocationHandler implements InvocationHandler {
public static final AtomicLong INVOKE_ID = new AtomicLong(0);
private Transporter transporter = new NettyTransport();
@Override
public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
RpcRequest rpcRequest = RpcRequest.builder()
.requestId(INVOKE_ID.getAndIncrement())
.interfaceName(method.getDeclaringClass().getName())
.methodName(method.getName())
.paramTypes(method.getParameterTypes())
.parameters(args)
.build();
CompletableFuture<RpcResponse> future = (CompletableFuture<RpcResponse>) transporter.sendRequest(rpcRequest);
// 阻塞获取结果
RpcResponse response = future.get();
if (!response.isSuccess()) {
throw new RpcException(RpcException.BIZ_EXCEPTION, response.getMessage());
}
return response.getResult();
}
}
根据调用的方法，将请求信息封装到RpcRequest请求对象中，服务端会将响应封装到RpcResponse响应对象中，如果调用失败，会抛出RpcException，code为RpcException.BIZ_EXCEPTION
public class RpcException extends RuntimeException {
public static final int NETWORK_EXCEPTION = 0;
public static final int BIZ_EXCEPTION = 1;
public static final int NO_PROVIDER_EXCEPTION = 2;
public static final int SERIALIZATION_EXCEPTION = 3;
private int code;
public RpcException(String message) {
super(message);
}
public RpcException(int code, String message) {
super(message);
this.code = code;
}
public RpcException(String message, Throwable cause) {
super(message, cause);
}
public RpcException(int code, String message, Throwable cause) {
super(message, cause);
this.code = code;
}
}
# 封装请求对象和响应对象
请求对象
@Data
@Builder
@NoArgsConstructor
@AllArgsConstructor
public class RpcRequest implements Serializable {
private long requestId;
private String interfaceName;
private String methodName;
private Class<?>[] paramTypes;
private Object[] parameters;
}
响应对象
@Data
@NoArgsConstructor
public class RpcResponse implements Serializable {
private long requestId;
private Integer code;
private String message;
private Object result;
public static RpcResponse success(Long requestId, Object result) {
RpcResponse response = new RpcResponse();
response.setCode(ResponseCodeEnum.SUCCESS.getCode());
response.setRequestId(requestId);
response.setResult(result);
return response;
}
public static RpcResponse fail(Long requestId, String message) {
RpcResponse response = new RpcResponse();
response.setCode(ResponseCodeEnum.FAIL.getCode());
response.setRequestId(requestId);
response.setMessage(message);
return response;
}
public boolean isSuccess() {
return this.code.equals(ResponseCodeEnum.SUCCESS.getCode());
}
}
用枚举表示响应状态，成功或者失败
@Getter
@AllArgsConstructor
public enum ResponseCodeEnum {
SUCCESS(200, "success"),
FAIL(500, "fail");
private final int code;
private final String message;
}
# 网络传输层
网络传输接口，目前在项目中写死了都用NettyTransport
public interface Transporter {
Object sendRequest(RpcRequest request);
}
@Slf4j
public class NettyTransport implements Transporter {
private RegistryService registryService = SpiUtil.load(RegistryService.class);
@Override
public CompletableFuture<RpcResponse> sendRequest(RpcRequest request) {
String serviceName = request.getInterfaceName();
InetSocketAddress address = registryService.lookup(serviceName);
Channel channel = ChannelMap.getChannel(address);
CompletableFuture<RpcResponse> requestFuture = new CompletableFuture();
ResponseFutureMap.put(request.getRequestId(), requestFuture);
channel.writeAndFlush(request).addListener((ChannelFutureListener) future -> {
if (future.isSuccess()) {
log.info("send msg: {} success", request);
} else {
log.error("send msg: {} failed", request);
future.channel().close();
requestFuture.completeExceptionally(future.cause());
}
});
return requestFuture;
}
}
通过SPI的方式加载注册中心的实现，根据调用的服务名获取服务端的地址，建立网络连接，发送请求信息
将没有拿到响应的消息放到ResponseFutureMap，当客户端收到响应消息后根据requestId找到对应的CompletableFuture，并完成。这样客户端就能唤醒这个响应消息对应的请求消息的线程，完成业务逻辑
public class ResponseFutureMap {
private static final Map<Long, CompletableFuture<RpcResponse>> FUTURES = Maps.newHashMap();
public static void put(Long requestId, CompletableFuture<RpcResponse> future) {
FUTURES.put(requestId, future);
}
public static void received(RpcResponse response) {
CompletableFuture future = FUTURES.remove(response.getRequestId());
if (future != null) {
future.complete(response);
}
}
}
# 注册中心
注册中心我们只提供了2个方法，服务注册和服务查找
public interface RegistryService {
/**
* 服务注册
*/
void register(String serviceName, InetSocketAddress inetSocketAddress);
/**
* 服务查找
*/
InetSocketAddress lookup(String serviceName);
}
@Slf4j
public class ZookeeperRegistryService implements RegistryService {
private final LoadBalance loadBalance = SpiUtil.load(LoadBalance.class);
@Override
public void register(String serviceName, InetSocketAddress inetSocketAddress) {
CuratorFramework zkClient = CuratorZkUtil.getZkClient();
String rootPath = new StringBuilder(ROOT_PATH).append("/").append(serviceName).toString();
CuratorZkUtil.create(zkClient, rootPath, true);
CuratorZkUtil.create(zkClient, rootPath + inetSocketAddress.toString(), false);
}
@Override
public InetSocketAddress lookup(String serviceName) {
log.info("serviceName: {}, loadBalance: {}", serviceName, loadBalance);
CuratorFramework zkClient = CuratorZkUtil.getZkClient();
String path = new StringBuilder(ROOT_PATH).append("/").append(serviceName).toString();
List<String> serviceUrls = CuratorZkUtil.getChildrenNodes(zkClient, path);
if (CollectionUtils.isEmpty(serviceUrls)) {
throw new RpcException(RpcException.NO_PROVIDER_EXCEPTION, "no provider");
}
String targetServiceUrl = loadBalance.selectService(serviceUrls);
String[] array = targetServiceUrl.split(":");
return new InetSocketAddress(array[0], Integer.valueOf(array[1]));
}
}
服务查找的时候，通过负载均衡策略确定调用的服务，然后通过Netty建立网络连接，发起调用
@Slf4j
public class ChannelMap {
private static final NettyClient nettyClient = new NettyClient();
// 服务地址 -> 对应的网络连接
private static final Map<String, Channel> channelMap = Maps.newHashMap();
public static Channel getChannel(InetSocketAddress address) {
log.info("address: {}", address);
String key = address.toString();
if (channelMap.containsKey(key)) {
Channel channel = channelMap.get(key);
if (channel != null && channel.isActive()) {
return channel;
} else {
channelMap.remove(key);
}
}
Channel channel = nettyClient.connect(address);
if (channel != null && channel.isActive()) {
channelMap.put(key, channel);
} else {
throw new RpcException(RpcException.NETWORK_EXCEPTION, "channel is not active");
}
return channel;
}
}
因为每次都建立连接非常耗时，所以用ChannelMap保存了服务及其对应的长连接，提高调用的速度
public class NettyClient {
private NioEventLoopGroup nioEventLoopGroup = new NioEventLoopGroup();
private Bootstrap bootstrap;
public NettyClient() {
Serializer serializer = new KryoSerializer();
bootstrap = new Bootstrap();
bootstrap.group(nioEventLoopGroup)
.channel(NioSocketChannel.class);
bootstrap.handler(new ChannelInitializer<SocketChannel>() {
@Override
protected void initChannel(SocketChannel ch) throws Exception {
ChannelPipeline pipeline = ch.pipeline();
pipeline.addLast(new RpcMsgDecoder(serializer, RpcResponse.class));
pipeline.addLast(new RpcMsgEncoder(serializer, RpcRequest.class));
pipeline.addLast(new NettyClientHandler());
}
});
}
public Channel connect(InetSocketAddress inetSocketAddress) {
Channel channel = null;
try {
ChannelFuture future = bootstrap.connect(inetSocketAddress).sync();
channel = future.channel();
} catch (Exception e) {
e.printStackTrace();
}
return channel;
}
}
NettyClient在启动的时候添加了3个handler
RpcMsgEncoder：消息编码器 RpcMsgDecoder：消息解码器 NettyClientHandler：处理响应消息
# 负载均衡策略
负载均衡策略接口
public interface LoadBalance {
String selectService(List<String> serviceUrlList);
}
public abstract class AbstractLoadBalance implements LoadBalance {
@Override
public String selectService(List<String> serviceUrlList) {
if (serviceUrlList.size() == 1) {
return serviceUrlList.get(0);
}
return doSelect(serviceUrlList);
}
public abstract String doSelect(List<String> serviceUrlList);
}
当服务提供者只有一个的时候直接返回即可
@Slf4j
public class RandomLoadBalance extends AbstractLoadBalance {
private final Random random = new Random();
@Override
public String doSelect(List<String> serviceUrlList) {
log.info("doSelect param serviceUrlList: {}", JsonConvert.obj2Str(serviceUrlList));
return serviceUrlList.get(random.nextInt(serviceUrlList.size()));
}
}
当服务提供者有多个时，随机选择一个发起调用
# 序列化
public interface Serializer {
/**
* 序列化
*/
byte[] serialize(Object obj);
/**
* 反序列化
*/
<T> T deserialize(byte[] bytes, Class<T> clazz);
}
基于Kryo对消息进行序列化和反序列化
@Slf4j
public class KryoSerializer implements Serializer {
/**
* 线程不安全，所以放到ThreadLocal中，可以在方法中每次new
*/
private ThreadLocal<Kryo> kryoThreadLocal = ThreadLocal.withInitial(() -> {
Kryo kryo = new Kryo();
return kryo;
});
@Override
public byte[] serialize(Object obj) {
try (ByteArrayOutputStream outputStream = new ByteArrayOutputStream();
Output output = new Output(outputStream)) {
Kryo kryo = kryoThreadLocal.get();
kryo.writeObject(output, obj);
kryoThreadLocal.remove();
return output.toBytes();
} catch (Exception e) {
log.error("serialize error", e);
throw new RpcException(RpcException.SERIALIZATION_EXCEPTION, e.getMessage(), e);
}
}
@Override
public <T> T deserialize(byte[] bytes, Class<T> clazz) {
try (ByteArrayInputStream inputStream = new ByteArrayInputStream(bytes);
Input input = new Input(inputStream)) {
Kryo kryo = kryoThreadLocal.get();
kryoThreadLocal.remove();
return kryo.readObject(input, clazz);
} catch (Exception e) {
log.error("deserialize error", e);
throw new RpcException(RpcException.SERIALIZATION_EXCEPTION, e.getMessage(), e);
}
}
}
# 编解码器
编码器
@AllArgsConstructor
public class RpcMsgEncoder extends MessageToByteEncoder {
private Serializer serializer;
private Class<?> clazz;
@Override
protected void encode(ChannelHandlerContext ctx, Object msg, ByteBuf out) throws Exception {
// clazz 是 msg 的父类
if (clazz.isInstance(msg)) {
byte[] body = serializer.serialize(msg);
int dataLength = body.length;
out.writeInt(dataLength);
out.writeBytes(body);
}
}
}
解码器
@Slf4j
@AllArgsConstructor
public class RpcMsgDecoder extends ByteToMessageDecoder {
private Serializer serializer;
private Class<?> clazz;
private static final int BODY_LENGTH = 4;
@Override
protected void decode(ChannelHandlerContext ctx, ByteBuf in, List<Object> out) throws Exception {
if (in.readableBytes() >= BODY_LENGTH) {
in.markReaderIndex();
int dataLength = in.readInt();
if (in.readableBytes() < dataLength) {
in.resetReaderIndex();
return;
}
byte[] body = new byte[dataLength];
in.readBytes(body);
Object object = serializer.deserialize(body, clazz);
out.add(object);
}
}
}
# 处理响应消息的业务handler
@ChannelHandler.Sharable
public class NettyClientHandler extends SimpleChannelInboundHandler<RpcResponse> {
@Override
protected void channelRead0(ChannelHandlerContext ctx, RpcResponse msg) throws Exception {
ResponseFutureMap.received(msg);
}
}
public class ResponseFutureMap {
private static final Map<Long, CompletableFuture<RpcResponse>> FUTURES = Maps.newHashMap();
public static void put(Long requestId, CompletableFuture<RpcResponse> future) {
FUTURES.put(requestId, future);
}
public static void received(RpcResponse response) {
CompletableFuture future = FUTURES.remove(response.getRequestId());
if (future != null) {
future.complete(response);
}
}
}
收到消息时唤醒对应的请求线程，给用户返回结果
# Producer端
public class RpcServer {
public static void main( String[] args ) {
StudentService studentService = new StudentServiceImpl();
// 向注册中心注册
ServiceMap.registryService(StudentService.class.getName(), studentService);
NettyServer nettyServer = new NettyServer();
nettyServer.start();
}
}
手动注册服务到注册中心
public class StudentServiceImpl implements StudentService {
@Override
public Student getStudentInfo(Integer id) {
Student student = Student.builder().id(id).name("test").age(10).build();
return student;
}
}
# 开启Netty服务
@Slf4j
public class NettyServer {
public static final int port = PropertiesUtil.getInteger("server.port", 8080);
public void start() {
log.info("nettyServer start");
Serializer serializer = new KryoSerializer();
EventLoopGroup bossGroup = new NioEventLoopGroup();
EventLoopGroup workerGroup = new NioEventLoopGroup();
DefaultEventLoopGroup eventLoopGroup = new DefaultEventLoopGroup();
try {
ServerBootstrap bootstrap = new ServerBootstrap();
bootstrap.group(bossGroup, workerGroup)
.channel(NioServerSocketChannel.class)
.childHandler(new ChannelInitializer<SocketChannel>() {
@Override
protected void initChannel(SocketChannel ch) throws Exception {
ChannelPipeline pipeline = ch.pipeline();
pipeline.addLast(new RpcMsgDecoder(serializer, RpcRequest.class));
pipeline.addLast(new RpcMsgEncoder(serializer, RpcResponse.class));
pipeline.addLast(eventLoopGroup, new NettyServerHandler());
}
});
ChannelFuture future = bootstrap.bind(port).sync();
future.channel().closeFuture().sync();
} catch (InterruptedException e) {
e.printStackTrace();
} finally {
bossGroup.shutdownGracefully();
workerGroup.shutdownGracefully();
}
}
}
启动的时候添加了3个channelHandler RpcMsgDecoder：消息解码器 RpcMsgEncoder：消息编码器 NettyServerHandler：处理请求消息并返回响应
@Slf4j
@ChannelHandler.Sharable
public class NettyServerHandler extends SimpleChannelInboundHandler<RpcRequest> {
@Override
protected void channelRead0(ChannelHandlerContext ctx, RpcRequest msg) throws Exception {
log.info("channelRead0");
RpcResponse response = invokeMethod(msg);
ctx.writeAndFlush(response).addListener(ChannelFutureListener.CLOSE_ON_FAILURE);
}
public RpcResponse invokeMethod(RpcRequest request) {
log.info("invokeMethod param request: {}", request.toString());
Object result;
try {
String serviceKey = request.getInterfaceName();
Object service = ServiceMap.getService(serviceKey);
Method method = service.getClass().getMethod(request.getMethodName(), request.getParamTypes());
result = method.invoke(service, request.getParameters());
} catch (Exception e) {
log.error("invokeMethod error", e);
return RpcResponse.fail(request.getRequestId(), e.getCause().getMessage());
}
return RpcResponse.success(request.getRequestId(), result);
}
}
根据请求信息定位到具体的方法，通过反射调用后，将响应结果封装到RpcResponse中，并返回
github地址 https://github.com/erlieStar/simple-rpc
